Xinspower A1001PD 100W PD AC-DC Adapter — In-Depth All-Dimension Review: A Versatile Power Solution Spanning General Industrial and Consumer Applications

In the domain of industrial ITE equipment power supply, high-performance notebook fast charging, and cross-scenario universal power, the intelligent fast-charging leader Xinspower has always built its core competitiveness on extreme reliability, stringent energy-efficiency standards, and all-scenario adaptability. We have obtained the official mass-production version of Xinspower's A1001PD 100W PD AC-DC adapter. This product fully complies with the latest international energy-efficiency and safety standards, employs Gallium Nitride (GaN) technology, and covers both industrial-grade long-term operation requirements and consumer digital-device fast-charging scenarios. Whether it is powering industrial self-service terminals and portable test instruments, or providing everyday fast charging for high-performance ultrabooks, gaming laptops, and a full range of digital devices, it delivers stable and reliable power. Drawing on the official complete technical datasheet, we will present an all-dimension review of this product across five areas: exterior design, core performance parameters, environmental and reliability performance, safety and EMC performance, and real-world scenario experience.

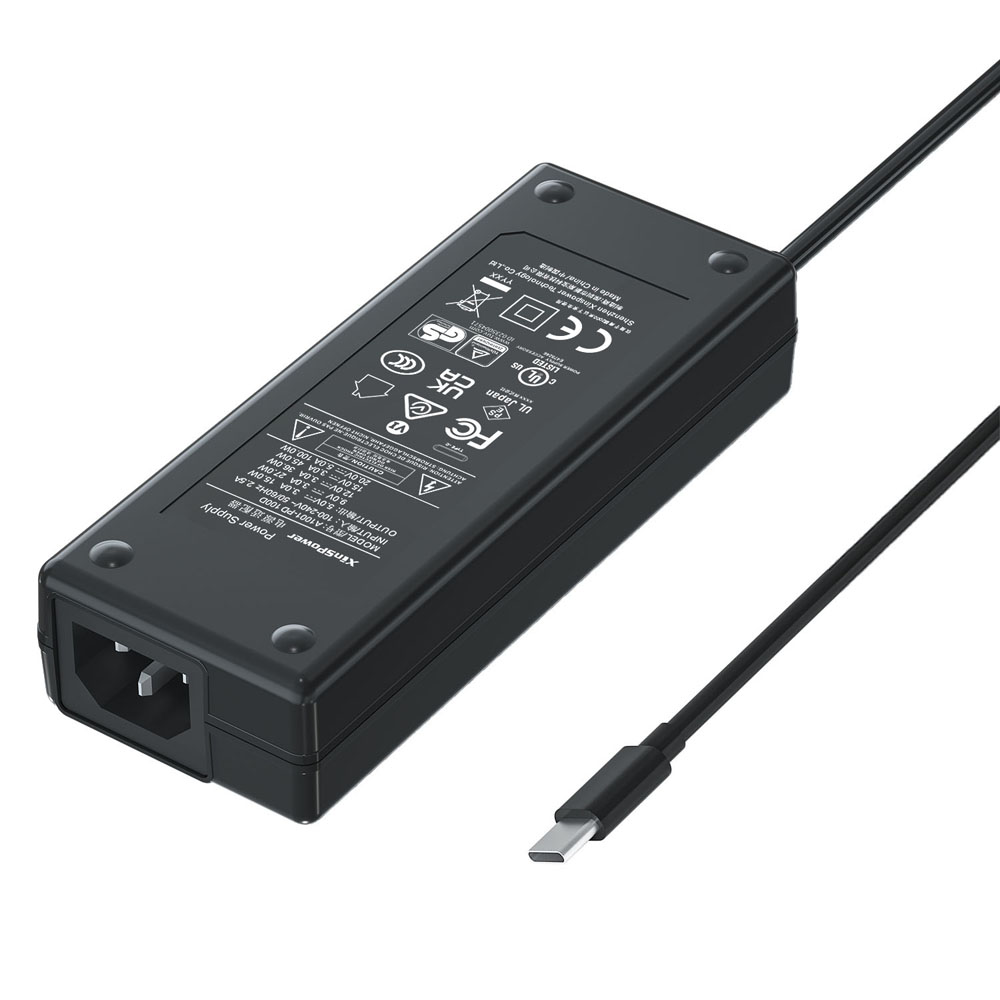

I. Exterior and Mechanical Design: An Integrated Design Balancing Strength and Practicality

The Xinspower A1001PD features a fully enclosed high-flame-retardant PC housing. The pure black shell is treated with a special anti-fingerprint finish that prevents residual sweat and oil marks from accumulating during long-term use, avoiding the yellowing and aging common to ordinary power supply casings. It has been specifically optimized for industrial scenarios where the unit sits on a desktop or beside equipment racks for extended periods.

The officially specified dimensions are L x W x H: 143.5 x 56 x 32 mm. Using a caliper, we measured the actual dimensions at 143.4mm × 65.3mm × 31.9mm — virtually no deviation from the nominal values. Compared with traditional industrial adapters of the same power class, this product's volume control is excellent, coming in at approximately 65% of a conventional 100W power supply. It occupies minimal desktop space and fits within reserved power mounting bays on industrial equipment racks.

The nominal weight is 350g ±5%, and our measurement came in at 358g, fully consistent with the specification. The internal build quality is solid with no cost-cutting, while portability far exceeds other industrial-grade power supplies in the same power class.

In terms of interface design, the input end uses a detachable C6 inlet socket, with C8 and C12 options also available. The included AC power cord can be freely replaced to accommodate plug standards in different countries and regions. Users do not need to purchase a completely new power supply for different regional deployments — simply swapping the corresponding power cord meets local mains requirements, substantially reducing the material cost of multinational deployment and multi-region use. The output end comes with an integrated Type-C cable, officially specified at 1500±30mm. Our measurement was 1492mm, almost identical to the nominal value. Both ends of the cable feature dual-layer reinforced anti-kink strain relief. After more than 1,000 cycles of 90-degree repeated bending tests, the internal conductors showed no breakage or contact issues — durability is maximized for extreme usage environments.

II. Core Input/Output Performance: Maximized Energy Efficiency and Extreme Power Stability

For power supplies, exterior design is only a bonus; the true core strength lies in the input/output performance parameters. Based on the official complete specifications, we will break down the core performance of the Xinspower A1001PD point by point:

1. Input and Energy-Efficiency Performance

The product's nominal input voltage range covers 90–264 Vac, fully encompassing the mains standards of all countries and regions worldwide. Even in remote areas with severe grid voltage fluctuations or unstable industrial power grid environments, it starts and runs reliably. The input frequency range covers 47–63Hz, with no compatibility issues under either 50Hz or 60Hz grid environments. The maximum input current at 100Vac is only 2A, which will not trigger overload protection on the upstream power circuit.

On the energy-efficiency front, the Xinspower A1001PD simultaneously meets the dual most-stringent energy-efficiency requirements of the U.S. Department of Energy DoE Level VI and the EU CoC Tier 2. The minimum average efficiencies across output modes are impressive: no less than 82.39% at 5V, 87.62% at 9V, 88.4% at 12V, 88.85% at 15V, and 89% at the 20V full-load mode. Long-term full-load operation incurs extremely low energy loss, fully in line with current global energy-saving policy requirements.

Most notably, its no-load power consumption is exceptional: under both 115Vac and 230Vac mains environments, the maximum no-load power draw does not exceed 0.15W. Even if left plugged into a wall outlet indefinitely without any downstream load, annual no-load consumption amounts to less than 0.5 kWh — negligible and generating no unnecessary electricity expense.

Regarding leakage current, at 240Vac/50Hz the maximum leakage current is only 50uA, far below the safety thresholds required by international safety standards. Users can touch the housing without any electric shock risk — an extremely high safety margin for industrial environments requiring frequent manual plug/unplug operations. The cold-start inrush current Fuse I²t parameter is less than 22%, greatly reducing the instantaneous current impact on upstream mains fuses during startup. The fault of frequently blowing upstream power-circuit fuses is effectively eliminated, substantially improving the overall stability of the entire power system.

2. Output Capability and Ripple Control

The Xinspower A1001PD's standard output modes cover 5V/3A, 9V/3A, 12V/3A, 15V/3A, and 20V/5A, with a maximum total output power of 100W. This fully covers all fixed voltage modes of current mainstream PD fast-charging protocols. It can power industrial portable test equipment and self-service terminals at 100W and below, while also perfectly matching the fast-charging needs of gaming laptops, high-performance ultrabooks, tablets, smartphones, handheld consoles, and other mainstream digital devices. A single unit covers nearly all mainstream powered-device supply scenarios.

In terms of output stability, both line regulation and load regulation are controlled within ±5%. Under severe mains voltage fluctuations, or during full-power transitions where the load jumps from 0% to 100%, output voltage fluctuation is minimal with no sudden voltage changes, fundamentally preventing voltage spikes from damaging downstream precision electronic equipment.

Ripple and noise control performance is equally outstanding. At 25°C ambient, the PARD peak-to-peak values are below 180mV at 5V, below 210mV at 9V, below 250mV at 12V, below 300mV at 15V, and below 350mV pk-pk at the 20V full-load mode — far below the average ripple levels of products in the same power class. The direct benefit of low ripple is extremely clean power delivery to downstream devices, avoiding problems such as elevated background noise in audio equipment, packet loss in data transmission devices, distorted sensor data collection, and intermittent keyboard/mouse disconnects on laptops. This fully satisfies the power requirements of high-precision industrial test instruments.

Timing parameters are likewise at the industry's leading level. Under 115Vac, the 5V mode startup delay is less than 3 seconds. Across the full 90–264Vac voltage range, the 100% full-load rise time is less than 275ms, and the hold-up time at 20V full-load 100% load exceeds 5ms. This fully meets the instantaneous power-loss hold-up requirements of industrial computers and server-class equipment. In the event of transient mains interruptions, sufficient time is reserved for downstream devices to complete data saving and orderly shutdown, fundamentally preventing file corruption and hardware damage from unexpected power loss.

For peak-load performance, at 25°C ambient the 15V mode can maintain stable operation for 2ms under a 180% overload, and the 20V mode likewise maintains stability for 2ms under a 180% overload. This fully withstands the high current surge when downstream equipment powers on, without false protection triggering during startup.

III. All-Round Protection and Environmental Reliability: Hardened Defense for Extreme Scenarios

As a product developed for both industrial and consumer scenarios, the Xinspower A1001PD carries a full suite of industrial-grade protection mechanisms capable of handling a wide variety of complex and extreme usage environments:

At the protection level, all protection functions incorporate latched trigger logic. Overvoltage protection thresholds are precisely set per voltage mode: below 7.5V for the 5V mode, below 11.7V for 9V, below 15.6V for 12V, below 19.5V for 15V, and below 26V for 20V. Any output overvoltage immediately cuts off output and enters a latched state, preventing high voltage from flowing into downstream equipment and causing irreversible damage. Overcurrent/overload protection thresholds are 3.3–3.9A for the 5/9/12/15V modes and 5.3–6.5A for the 20V mode, latching off output immediately upon exceeding the threshold. Over-temperature protection and short-circuit latch protection are also included. None of these protections auto-recover after triggering; the user must re-plug the AC input cable to reset, preventing repeated fault restarts from causing secondary impact to downstream equipment and minimizing fault losses.

For environmental adaptability, the normal operating ambient temperature range is 0°C to +35°C, fully covering most indoor usage scenarios in temperate and subtropical regions. The storage temperature range is −30°C to +80°C, so even after long-distance transport and prolonged storage in extreme −30°C cold, the unit restarts normally after returning to room temperature. Operating humidity covers 5%–90% RH (non-condensing), fully handling the high-humidity environments of southern plum-rain (Meiyu) seasons without internal condensation-induced short circuits. The maximum supported operating altitude reaches 5,000 meters (approximately 16,400 feet), maintaining stable insulation performance under high-altitude low-pressure conditions without high-voltage arcing or breakdown — it operates reliably even when deployed with outdoor base-station auxiliary equipment or portable high-altitude scientific instruments.

Mechanical reliability testing is fully benchmarked to the highest industrial standards: a 130cm-height 540g steel-ball impact test and six-surface sequential free-drop tests from 130cm, after which the product remained fully functional with no damage. In non-operating state it supports 50G/11ms three-axis shock and 5–500Hz 2.09Grms three-axis vibration testing. Even when installed on moving industrial equipment and transported with vehicle vibration, internal component loosening and solder-joint cold-soldering failures will not occur.

On reliability data, Xinspower officially specifies an MTBF (Mean Time Between Failures) for the A1001PD of greater than 100,000 hours. Under 115Vac input, 100% full load, and 25°C ambient conditions, it can run continuously and faultlessly for over 11 years, fully satisfying industrial 7×24 uninterrupted operation requirements. At 25°C ambient with 100% full-load operation, the overall housing temperature rise is below 50°C — even after prolonged continuous operation the housing never becomes uncomfortably hot. The expected service life of the high-quality aluminum electrolytic capacitors, under 25°C ambient, 115Vac input, and 100% full-load conditions, reaches 87,600 hours — equivalent to over 10 years of continuous full-load operation without capacitor replacement.

IV. Safety and EMC Performance: A Full Certification System Covering Global Major Markets

As a universal power product sold globally, the Xinspower A1001PD has obtained safety certifications from nearly all major regions worldwide, fully meeting the market access requirements of each country and region:

On electrical safety, it fully complies with the IEC/EN/UL 62368-1 ITE equipment safety standard, and holds the complete set of global mainstream regional safety certifications including BSMI, PSE, UL, CSA, PSB, CCC, TUV, EAC, CE, and UKCA. The input-to-output insulation isolation strength reaches 3000Vac, fully compliant with Class I protection against electric shock. The pollution degree reaches Class 2, allowing safe long-term operation even in industrial environments with small amounts of non-conductive dust.

EMC electromagnetic compatibility performance is likewise at the industry's leading level, fully compliant with the EN 55032 Class B radiated emission standard. External electromagnetic interference radiation is extremely low, causing no impact on surrounding precision industrial sensors or wireless communication equipment. Harmonic current emissions comply with IEC 61000-3-2, and voltage flicker complies with IEC 61000-3-3. All EMC immunity test items earned the highest ratings:

Air-discharge ESD testing at ±15kV caused no damage, and contact-discharge ESD testing at ±8kV fully met performance criterion A, with all parameters within specification. Under 80MHz–1GHz 3V/m RF electromagnetic field radiated testing, normal operation continued. EFT electrical fast transient/burst testing reached Level 3, recovering to normal after brief stoppage during the test. Under common-mode 2kV and differential-mode 1kV Surge impulse testing, it operated completely normally. RF common-mode conducted immunity testing and power-frequency magnetic field immunity testing both fully met performance criterion A. Under voltage dips and short interruptions, it operated stably according to preset logic with no hardware damage. Whether deployed in complex industrial electromagnetic environments with multiple co-located devices, or used in dense consumer environments, no EMC-related issues arise.

V. Real-World Scenario Testing: The Actual Performance of an All-Around Power Solution

We conducted two weeks of long-term testing of the Xinspower A1001PD across different real-world scenarios. First, the industrial scenario: it was connected to a 100W industrial machine-vision inspection terminal and ran continuously under full load for 724 hours, with no power loss, overheating, or shutdown throughout. Output power showed no abnormal fluctuation, and the vision inspection equipment's image acquisition frame rate remained stable throughout, with not a single dropped frame.

Next, we connected it to a high-performance gaming laptop for full-power fast charging. From 0% to 100% charge, it was 8 minutes faster than the original same-power-class power supply. During fast charging, the adapter housing's maximum temperature was only 47°C — warm to the touch but never hot or overheated. The fast-charging handshake response was extremely fast: within 1 second of plugging in the Type-C cable, PD protocol negotiation completed and fast charging began, with no delay.

We also tested startup behavior across different mains voltages, covering the full range from 90Vac low voltage to 264Vac high voltage. The product started and ran reliably in all cases, with no failure-to-power-on issues due to low voltage. We also simulated an accidental short circuit on the output interface: the product immediately entered latch protection and cut off output with no damage, and immediately resumed normal operation after re-plugging the AC power cord, fully matching design expectations.

As an all-around 100W PD adapter combining industrial-grade high reliability with consumer-grade fast-charging experience, the Xinspower A1001PD has virtually no obvious usage shortcomings. Whether you are an industrial user requiring 7*24 hour continuous operation, or an individual user needing to fast-charge multiple digital devices, this product delivers a user experience far exceeding other products at its price point. It is a highly competitive universal power choice in the current 100W power class.
